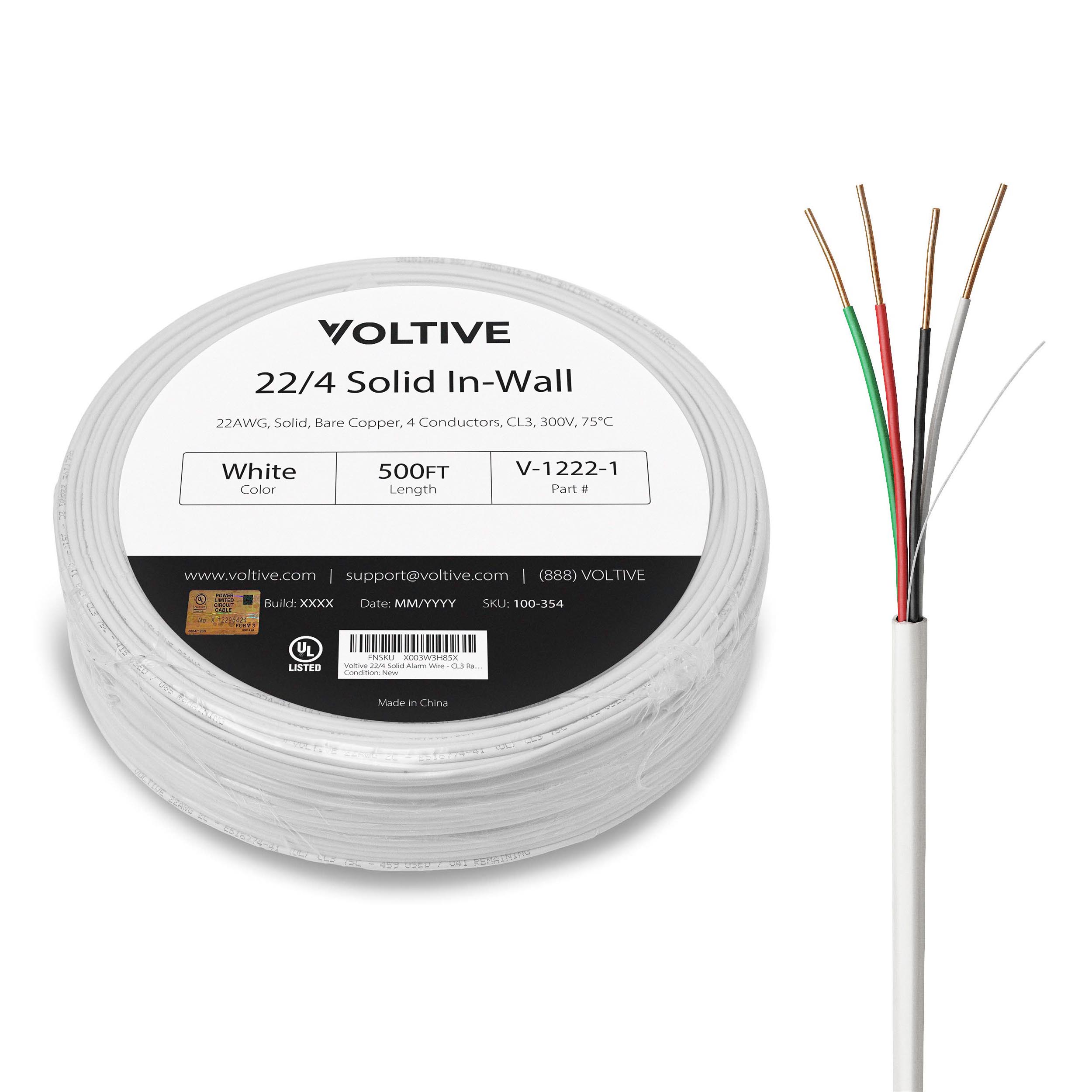

22/4 Solid Alarm Wire - In Wall

Model #: V-1222
22 gauge 4 conductor solid alarm wire, featuring solid bare copper conductors. General Purpose (CL3) fire safety rated. UL Listed.
Part #:
V-1222-1
Color:
White
Length:
500ft

$74.99
Color: White
Length: 500ft
Out of Stock
Unavailable
Add to Cart
Adding to Cart
Loading lead times...
V-1222

Cable That's Built Right

  • Oxygen-Free Copper Conductors have superior performance and durability compared to Copper Clad Aluminum (CCA).
  • General Purpose (CL3) fire safety rating for installation in walls and risers (between floors) in residential buildings and in walls in commercial buildings.
  • Meets strict UL 13 materials and performance standard.
  • Integrated Ripcord makes it a cinch to remove longer lengths of the jacket.
  • Jacket Markings clearly show the part number, foot markings, and all regulatory information.

Want to learn more? Click here.

General

  • Download Spec SheetDownload
  • RatingsCL3
  • Operating Temperature75°C
  • Max. Operating Voltage300v
  • Available ColorsWhite
  • Available Lengths500ft

Jacket

  • MaterialPolyvinyl Chloride (PVC)
  • Overall Diameter3.5mm
  • Thickness0.45mm
  • Ripcord
  • Paper Sleeve

Conductors

  • Gauge22 AWG
  • Strand Count1
  • MaterialOxygen Free Copper
  • Count4
  • ColorsRed, Black, White, Green
  • InsulationPolyvinyl Chloride (PVC)
